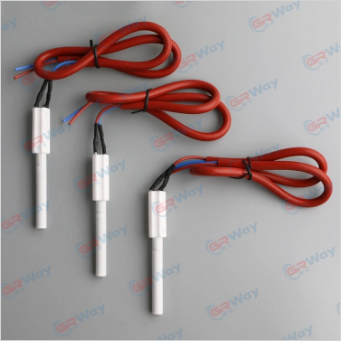

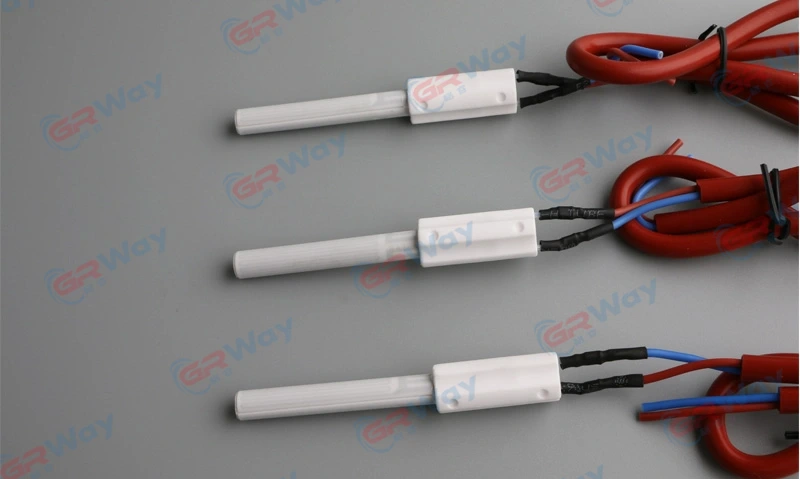

Biomass Boiler Igniter

Biomass Boiler Igniter

GRWAY® Biomass Boiler Igniter are produced by implementing ceramic lamination processes. Due to the compactness, high power and rapid heating speed.Ceramic Heater can provide higher reliability than ever before. Mainly applications include use as innovative types of heaters in the automotive, medical and semiconductor industries.

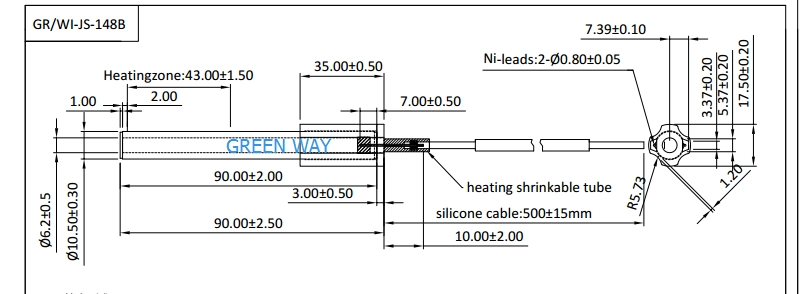

Parameter of GREENWAY Ceramic Pellet Heater

Part Number: G90105
ApplicationPellet burner/biomass boiler
Ceramic Holder17.5mm/25mm or Accordingly
Working voltage120V+/-10%
230V+/-10%
Heating ElementWhite 95%alumina ceramic

Boiler Boiler Igniter Material

1. Heater: white alumina ceramic, and the content of alumina is no less than 95%.

2. Ni-wires: N6 Ni-wires with 0.8mm diameter.

4.3 Brazing material: Ag72Cu28

3.Ceramic Holder: Alumina ceramic 95%,17.5mm

4.Heat shrinkable tube: black; heat resistance180°C

5.Cable: silicone cable, heat resistance 180°C

General Properties of Biomass Boiler Igniter

PropertiesValueCondition
Forward CurrentAC220V+/-10%50/60Hz
Power Consumption220V114W~134W
230V120W~150W
240V131W~160W
Heating ResistanceAccordingly23℃±2℃
Rising timeWithin 30s to 800°CAfter 120 s to 940°C~Applied at AC 220V and 23℃±2℃ambient temperature
Maximum Temperature1050°C
Insulation Resistance500VDC-100 MΩ MIN.Temperature 23℃±2℃Humidity 65%±10%Tester: Insulation resistance tester.Putting the heating area into 10% ammonium nitrate solution, plugging DC500V on the position of 5cm away from the electrode.
Withstand voltageAC1500V,for one second, the leak current should less than 5mATester :pressure tester.Putting the heating area into the tap water, plugging in AC 1500V for one second on the position of 5mm away from the electrode.
Ni-wire Pull Strength TestNo less than 3.0KgfTester: Tensile tester.Angle:45°C
Power-on testInput the setting voltage for one minutes, no these phenomenon will occur such as no heat, uneven heat and explosion.Inserting the heating leads to the test equipment, then input the regulated voltage for one minute
Resistance TestHeating resistance: AccordinglyTester: DC low resistance tester
AppearanceNone of following conditions can be accept such as mix-color, crack, pin hole, scratch, contamination, and chipping. Leads should be welding on right angle.Visual method. If the defect is difficult to distinguish,usingX20,X100, X200 microscope to check

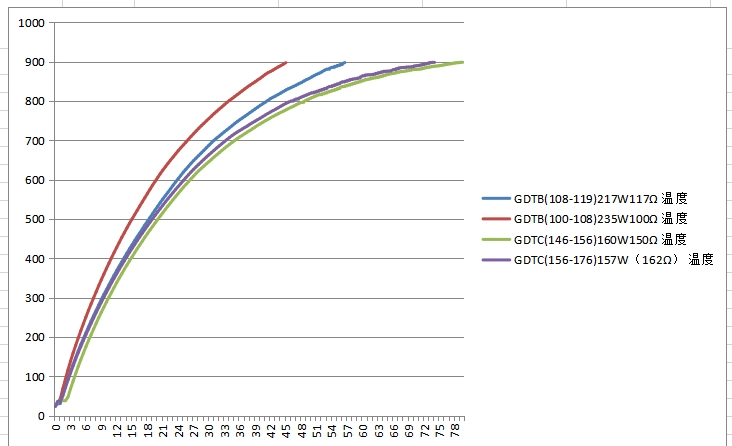

Rising temperature( for reference)

Rising temperature varied slightly according to resistance.

The graph below shows the different temperatures on different resistance value.

GREENWAY Biomass Boiler Igniter Application

Wood pellet stove

Wood pellet boiler

Wood pellet burner

Wood chips burner

Straw burner

Other biomass burner

Packing and Delivery

Box;Carton;
Delivery with Express such as TNT/DHL/Fedex and UPS

Lead time:1-35 working days

FAQ

1. Q:Can ceramic heating core be customized , such as shape or dimension?

A:Surely, heating core is welcome customized as your need.

2. Q: May i know which payment will be accepted by your company?

A: So far 100%T/T against PO., or negotiation.

3. Q:About the after-sale service, how can you solve the problems occurred of your overseas customer in time?

A:The warranty of our ceramic heater is normally 13 months, during this period, we will arrange the international express immediately(or later batch), to make sure the replace parts to be delivered as soon as possible.
